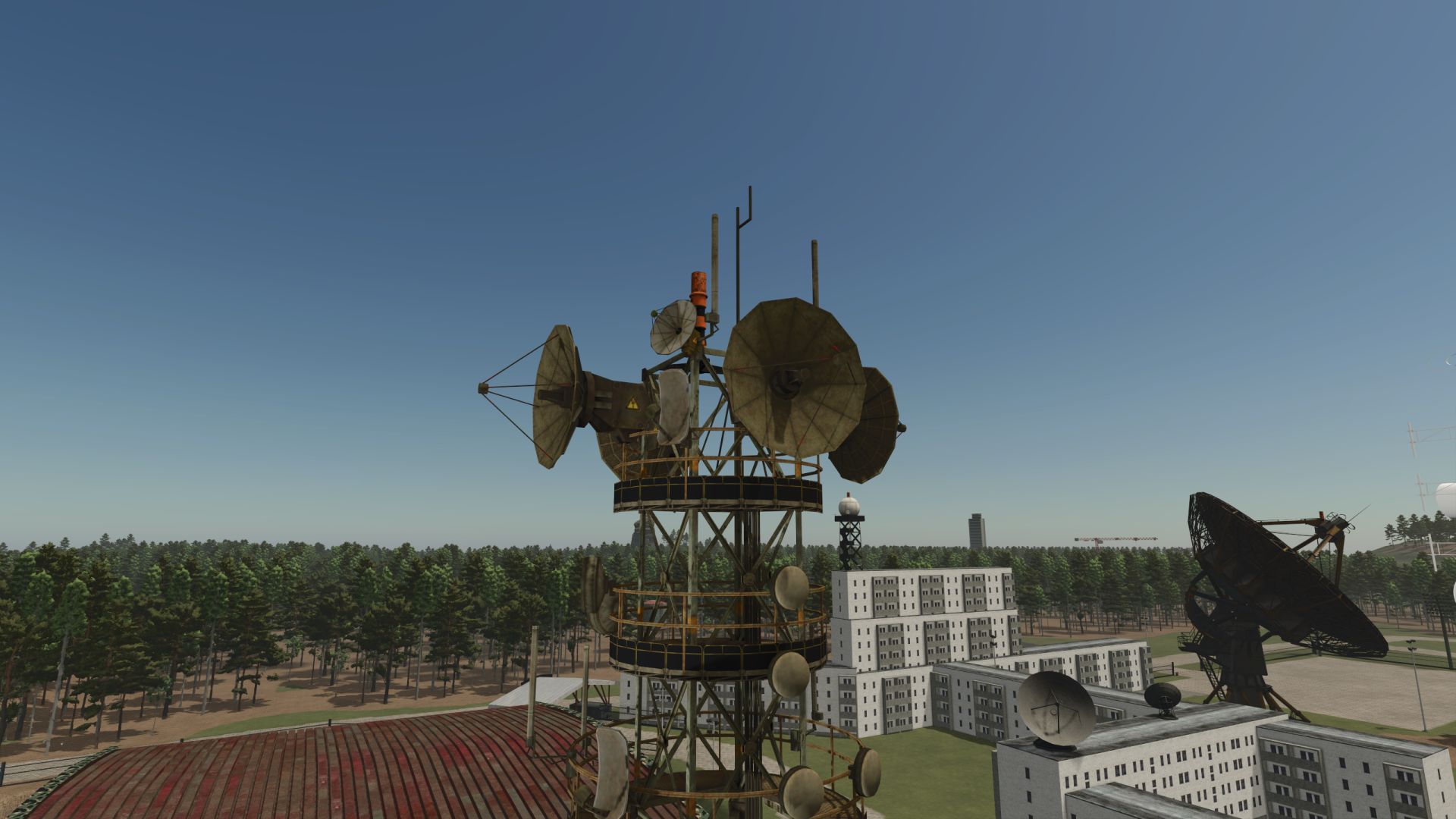

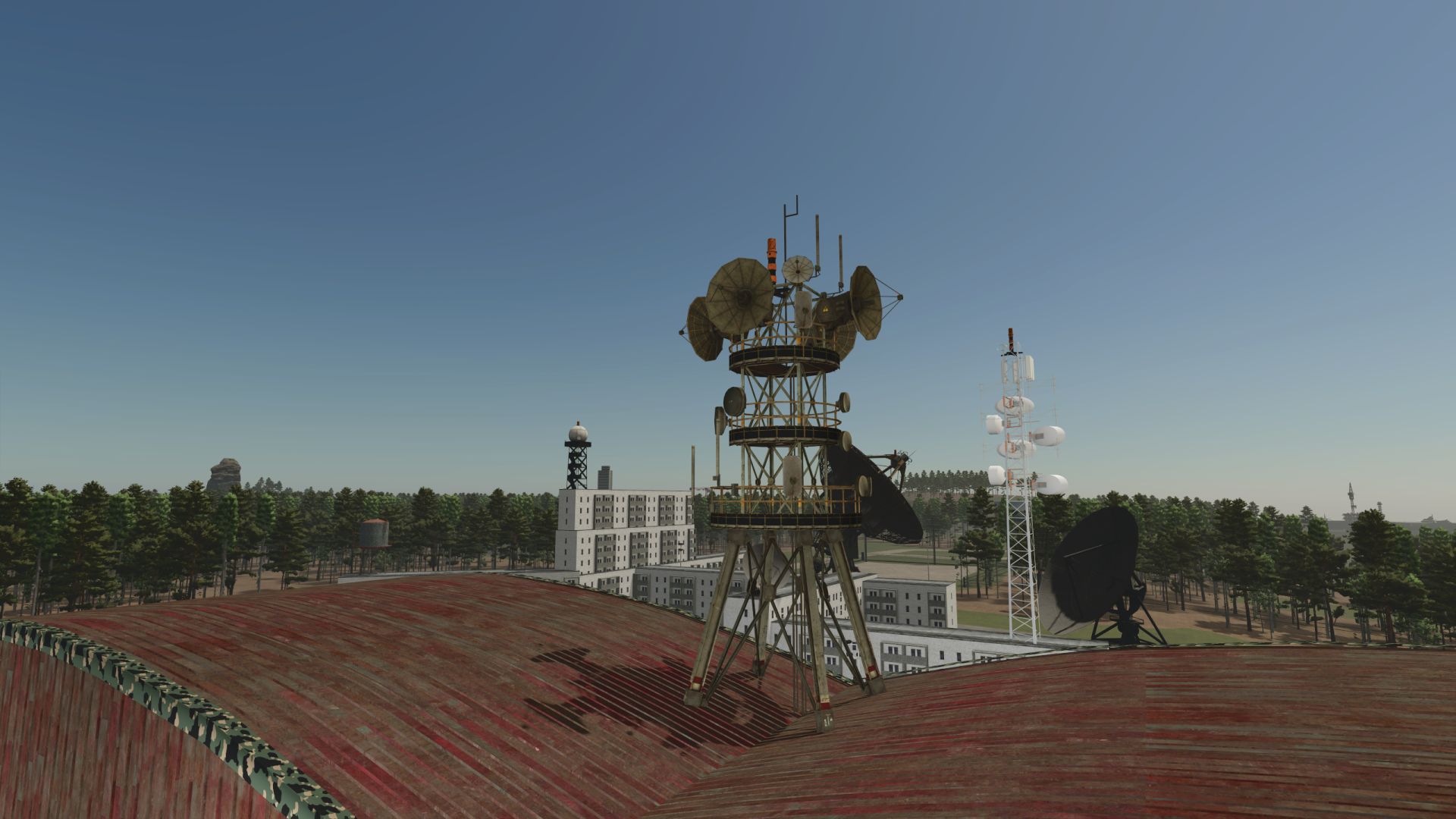

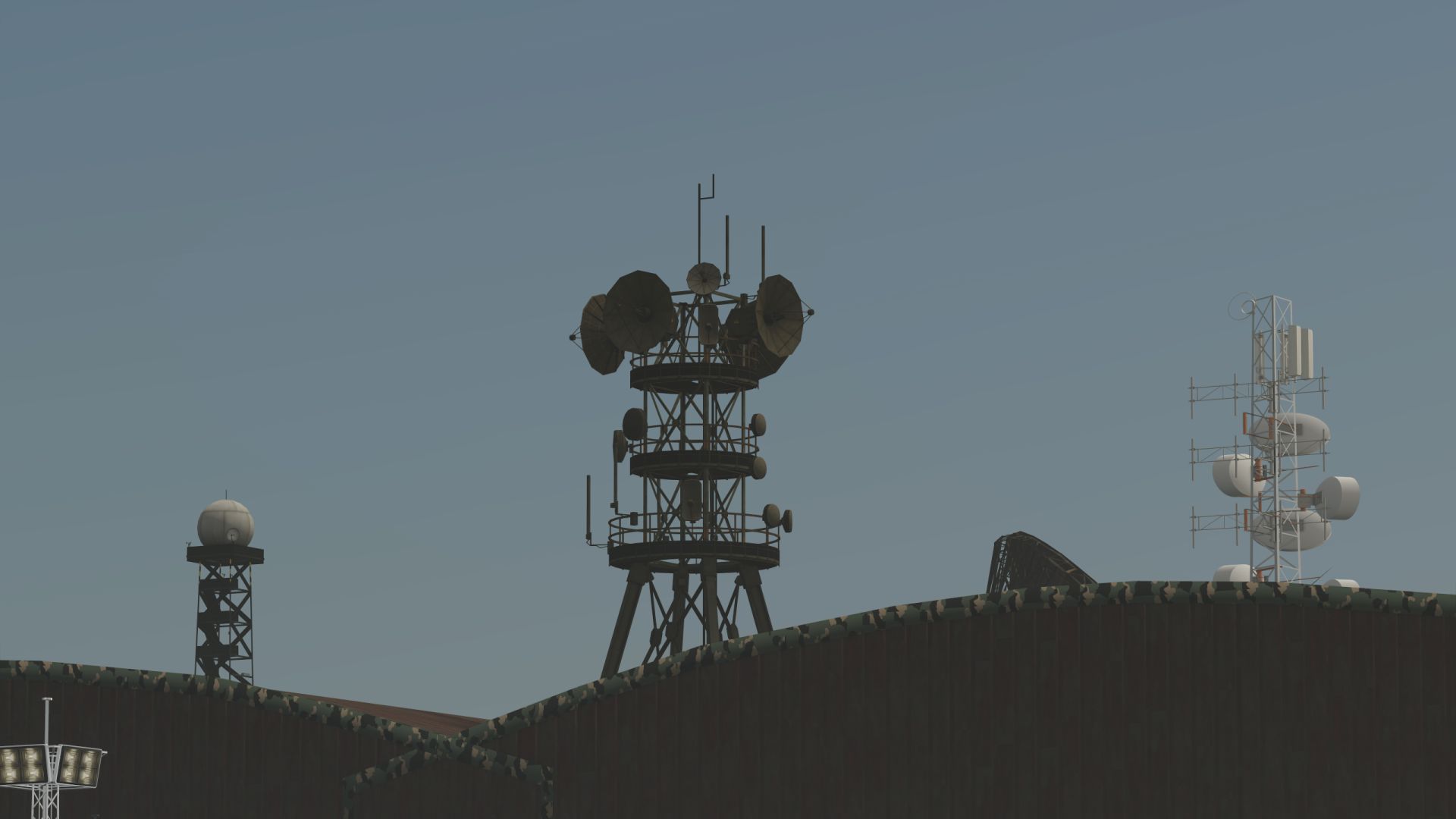

Structure Type: High-elevation tactical and strategic communication and retransmission tower featuring multiple directional antenna arrays.
Description and Components:
Parabolic and Horn Antennas: Equipped with various parabolic reflector dishes of different diameters oriented in multiple directions, designed for high-capacity point-to-point microwave links.
Support Structure: Composed of a structural metal lattice tower with intermediate maintenance platforms, optimized to elevate equipment above terrain obstacles and maximize line-of-sight propagation.
Omnidirectional and Whip Antennas: Integrates additional vertical elements and dipoles at the apex for general radio frequency communications or backup data links.
Summary and Military Utility
Broadband Links and Command Networks: Its primary function is to establish and maintain secure, high-speed communications, telemetry, and data transmission (voice, video, and tactical orders) between different military bases, decentralized command posts, and fixed or mobile radar centers.
Campaign Resiliency: Elevated on a fixed or semi-permanent structural tower, it significantly extends the operational range of field networks, bypassing terrain masking to ensure uninterrupted connectivity for defense infrastructure.
